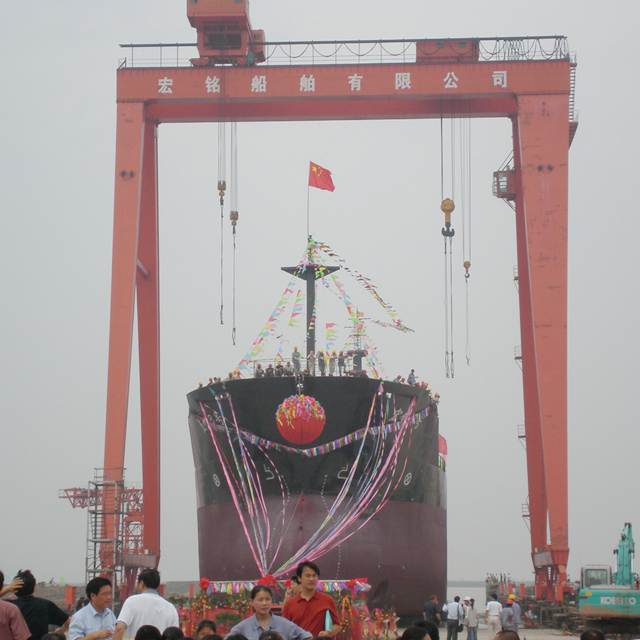

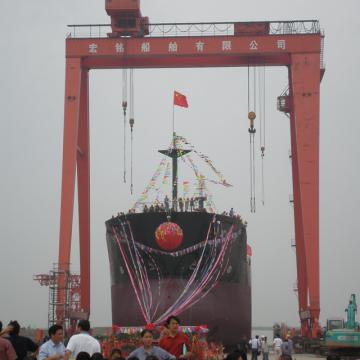

Gantry Crane for Ship Building
Description
Gantry crane for ship building is used in shipyard to help lift, overturn and assemble ships.
- Product Details
- Make an Inquiry
Gantry crane for ship building is used in shipyard to help lift, overturn and assemble ships.
It is equipped with upper trolley and down trolley to finish above operations.
Main technical parameters
| Product Model | MUhz(60t×2+20t) | MUhz(300t×2+400t) |
|---|---|---|
| Lifting capacity(m) | 120 (≥11) | 600 (≥11) |
| Overturn capacity(t) | 120 | 600 |
| Span(m) | 40 | 180 |
| Lifting height above rail(m) | 50 | 80 |
| Lifting height below rail(m) | 6 | 12 |
| Carne moving speed with full load(m/min) | 0-30 | 0-35 |
| Carne moving speed without load(m/min) | 0-45 | 0-45 |
| Working level | A5 | A3 |
| Upper trolley lifting capacity(t) | 2×60 | 2×300 |
| Upper trolley lifting speed(m/min) | 0-5 | 0-3 |
| Upper trolley moving speed with full load(m/min) | 0-30 | 0-30 |
| Upper trolley moving speed without load(m/jmin) | 0-45 | 0-45 |
| Down trolley lifting capacity (t) | 120/20 | 4000/20 |
| Down trolley main hook lifting speed(m/min) | 0-5 | 0-3 |
| Down trolley auxiliary hook lifting speed(m/min) | 0-20 | 0-20 |
| Down trolley moving speed with full load(m/min) | 0-30 | 0-30 |
| Down trolley moving speed without load(m/min) | 0-45 | 0-45 |
| Wheel press(kn) | 340 | 938 |
| Power supply | AC 10KV 50HZ | AC 10KV 50HZ |
