Segment assembled bridge girder launcher
Description

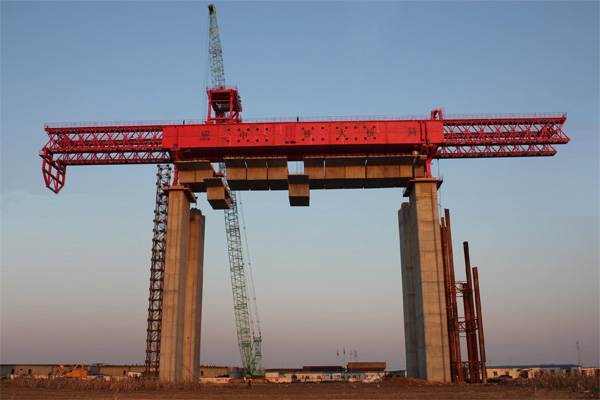

HZP1600 segment assembled bridge girder launcher uses precast girder segments assembly method to construct bridge
- Product Details
- Make an Inquiry
1. Application range of HZP1600 segment assembled bridge girder launcher
HZP1600 segment assembled bridge girder launcher is used to erect the prestressed concrete girder segments in span 50m or 51m.
HZP1600 segment assembled bridge girder launcher is used to erect the prestressed concrete girder segments in span 50m or 51m.
Below is simple introduction of precast girder segments assembly method it uses:
longitudinally divide girders into several sections, and prefabricate them in the factory or near to the bridge and carry them to bridge abutment, then add pre-stress to assemble all segments to the whole structure.
2. Main technical parameters of HZP1600 segment assembled bridge girder launcher
| Product Model | HZP1600 |
|---|---|
| Max. hanging weight(t) | 1600 |
| span(m) | 50、51 |
| Lifting height of trolley(m) | 56 |
| Rated lifting capacity(t) | 140 |
| Max. working slope | 2％ |
| Max. working transverse slope | 2％ |
| Min. curved radius(m) | 5500 |
| Traveling speed(m/min) | 1 |
| Speed of erection of girder(day/span) | 10 |
| The whole machine power(kw) | 180 |
| The total weight(k) | 750 |
